Problems Migrating Catalogue Data

In AutoCAD Electrical 2015, the catalogue (default_cat.mdb) database structure is slightly different to previous versions because of new fields. You should use the  available from the Project ribbon bar to merge and import a previous versions data into the 2015 structure.



However some customers have reported an issue with merging of catalogue data using the Migration Utility because of inconsistencies in their existing default_cat.mdb data. Therefore an alternative method described below will also provide a log file with basic information on what may have caused the non-merging of data.



To run:



  • Browse to the following directory
    • Windows x64     C:\Program Files\Autodesk\AutoCAD 2015\Acade\x86
    • Windows x86     C:\Program Files\Autodesk\AutoCAD 2015\Acade\
  • Run the file aceDbMergeUtil.exeSelect ¤Catalog Content
    • If you receive an error instantly and you are running x64, copy the two dll’s from the C:\Program Files\Autodesk\AutoCAD 2015\Acade\x86\en-US to the C:\Program Files\Autodesk\AutoCAD 2015\Acade\x86\ directory
  • Select Next

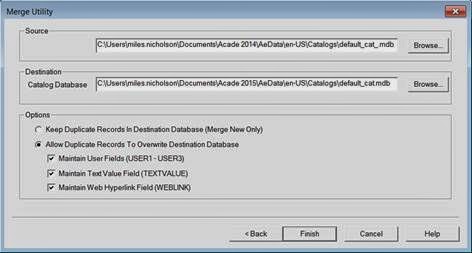

  • Select the source catalogue as your 201* database and the destination as your 2015 database
  • Select required options





  • Select Finish



If the merging of the two databases fails, it will give you a log file located in the catalog folder (e.g. C:\Users\<<your user name>>\Documents\Acade 2015\AeData\en-US\Catalogs)

If you have difficulty in understanding the file, call customer services on 01784419911
